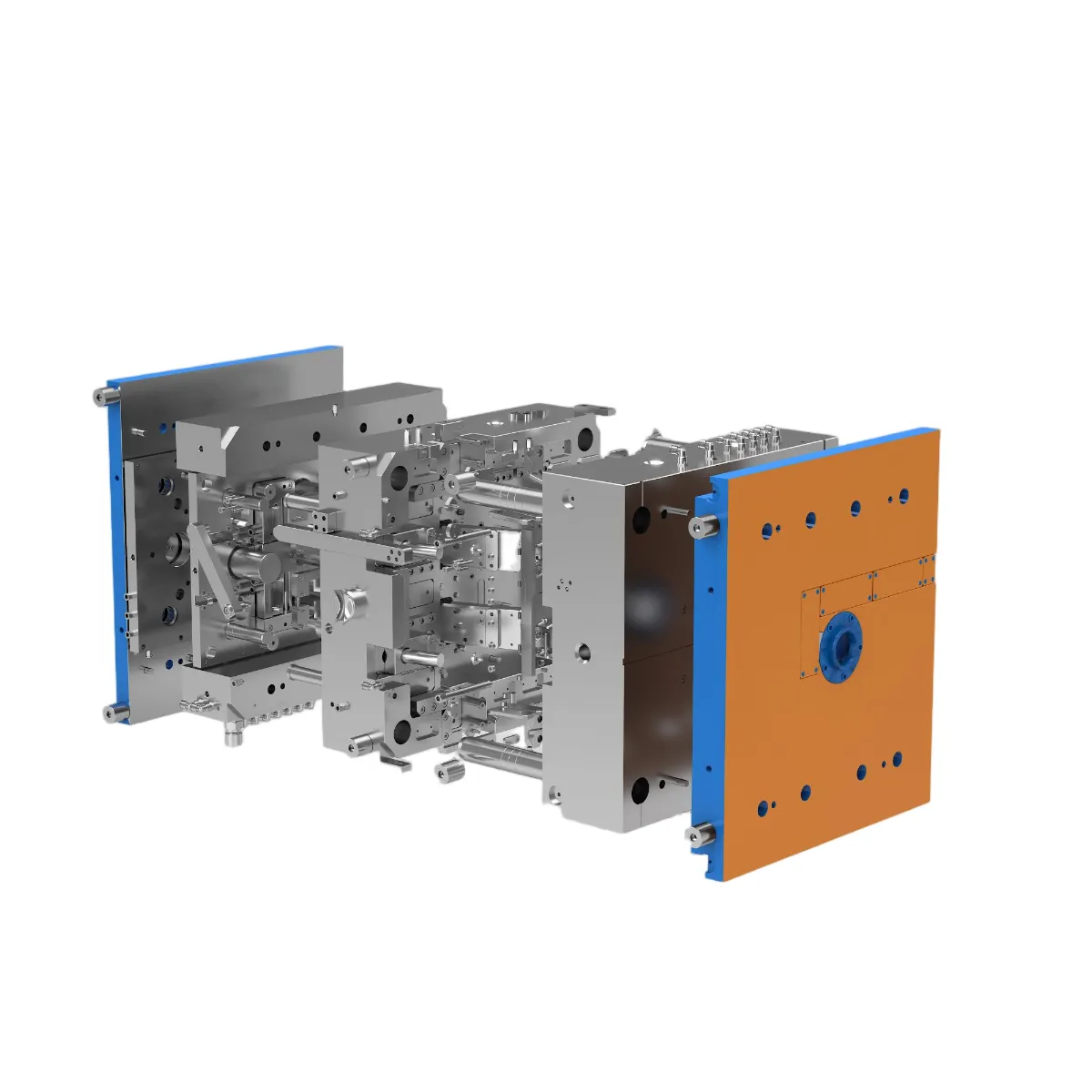

Refrigerator Freezer Drawer Injection Mold

Integrated One-Step Molding: Engineered for high-efficiency production of refrigerator freezer drawers, completing molding, core pulling, ejection, cooling, and gate trimming in a single automated cycle.
Full-Series Compatibility: Suitable for all structural drawer components across different freezer capacity specifications and door matching designs.

Corrosion-Resistant Steel: Utilizes premium corrosion-resistant tool steels such as S136 and 2316, offering superior wear resistance and erosion resistance.
High Polish & Hardness: Quenched to HRC 48–52 with mirror-finish polishing up to SPI A2 grade, ensuring smooth optical clarity for transparent drawers.
Extended Service Life: Total mold service life reaches ≥ 800,000 shots (up to 1,000,000 shots under optimal low-temperature operating maintenance).

Parameter	Specification Details
Mold Type	Hot Runner / Cold Runner system optional
Mold Steel	Core & Cavity: S136 ESR / 2316 low-temperature tough steel Mold Base: P20 / 718H pre-hardened steel
Cavity Design	1 Cavity (1×1) or 2 Cavities (1×2) based on drawer dimensions and production capacity requirements
Injection Machine Tonnage	250T – 650T
Molding Materials	Low-temperature resistant PP, Transparent PS, ABS, AS, Food-grade Copolymer PP
Mold Lifespan	≥ 800,000 shots (up to 1,000,000 shots under standard maintenance)
Cooling System	3D conformal cooling channels + high-pressure spot cooling, temperature fluctuation ≤ ±2°C, cycle time reduced by 25%
Typical Drawer Dimensions	$300\times200\times150\text{ mm}$ ~ $500\times400\times200\text{ mm}$
Feature Integration	Guide rail sliders, limit snaps/clips, handle mounting locations, transparent observation windows
Dimensional Tolerance	Guide rail mating surfaces: $\pm0.02\text{ mm}$ Outer contour: $\pm0.08\text{ mm}$
Flatness Requirement	$\le 0.08\text{ mm} / 200\text{ mm}$
Food-Grade Compliance	Compliant with GB 4806.7-2016 & FDA 21 CFR 177.1520
